Hexagon head bolts

EN 14399-3 (HR)

Partially threaded hexagon head bolt EN 14399-3 (HR)


The EN 14399-3 hexagon head bolt is designed for prestressed structural connections in metal constructions where maximum safety and reliability are required. Manufactured in accordance with this European standard, it offers a high yield strength and excellent load-bearing capacity. It is typically used in combination with specific nuts and washers from the same system, ensuring optimal performance in critical connections. Ideal for metal structures, bridges, and engineering applications, it provides a durable and robust fastening even under demanding conditions.

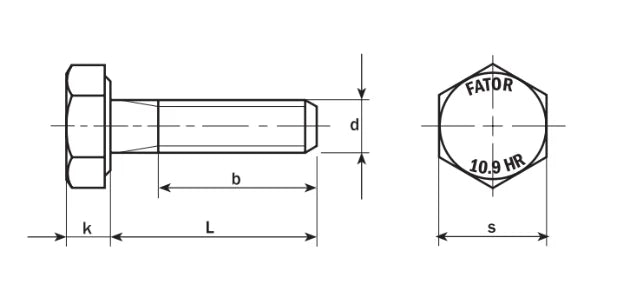

Imagen de la sección

Product dimensions

d P b1 (1) b1 (2) b1 (3) k s
M12 1,75 30 - - 7,5 22
M14 2 34 40 - 8,8 24
M16 2 38 44 - 10 27
M18 2,5 42 48 - 11,5 30
M20 2,5 46 52 65 12,5 32
M22 2,5 50 56 69 14 36
M24 3 54 60 73 15 41
M27 3 60 66 79 17 46
M30 3,5 66 72 85 18,7 50
M36 4 78 84 97 22,5 60

b1 (1) L ≤ 125 mm. (2) L ≤ 200 mm. (3) L > 200 mm

Grades
