Hexagon nuts
DIN 934
The DIN 934 hexagon nut is a standard fastener widely used to ensure strong and secure connections in mechanical and structural applications. Manufactured according to DIN standards, it offers dimensional accuracy and full compatibility with metric screws and studs. Available in steel in various strength classes, as well as in A2 and A4 stainless steel or brass, it adapts to different environments and requirements. With finishes such as zinc plating, black oxide plating, or hot-dip galvanizing, it provides adequate corrosion protection and a long service life.

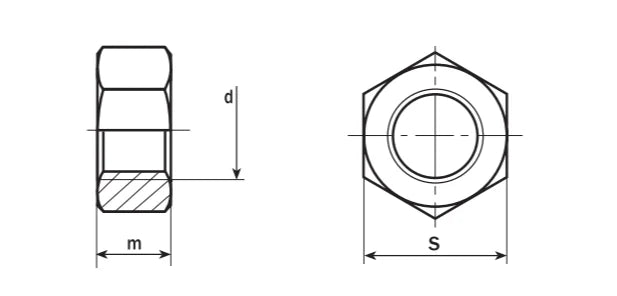

Product dimensions
| d | P | m | s |
|---|---|---|---|
| M3 | 0,5 | 2,4 | 5,5 |
| M4 | 0,7 | 3,2 | 7 |
| M5 | 0,8 | 4 | 8 |
| M6 | 1 | 5 | 10 |
| M7 | 1 | 5,5 | 11 |
| M8 | 1,25 | 6,5 | 13 |
| M10 | 1,5 | 8 | 17 |
| M12 | 1,75 | 10 | 19 |
| M14 | 2 | 11 | 22 |
| M16 | 2 | 13 | 24 |
| M18 | 2,5 | 15 | 27 |
| M20 | 2,5 | 16 | 30 |
| M22 | 2,5 | 18 | 32 |
| M24 | 3 | 19 | 36 |
| M27 | 3 | 22 | 41 |
| M30 | 3,5 | 24 | 46 |
| M33 | 3,5 | 26 | 50 |
| M36 | 4 | 29 | 55 |
| M39 | 4 | 31 | 60 |
| M42 | 4,5 | 34 | 65 |
| M45 | 4,5 | 36 | 70 |
| M48 | 5 | 38 | 75 |
| M52 | 5 | 42 | 80 |
| M56 | 5,5 | 45 | 85 |
| M60 | 5,5 | 48 | 90 |
| M64 | 6 | 51 | 95 |
| M68 | 6 | 54 | 100 |
| M72 | 6 | 58 | 105 |
| M76 | 6 | 61 | 110 |
| M80 | 6 | 64 | 115 |
| M90 | 6 | 72 | 130 |
| M100 | 6 | 80 | 145 |
| M110 | 6 | 88 | 155 |
Grades
