Hexagon nuts
DIN 7967
The DIN 7967 hexagon nut is a fastener designed for specific applications requiring a particular geometry and a secure fit. Manufactured according to DIN standards, it offers dimensional accuracy and compatibility with metric screws. Available in steel and stainless steel, it adapts to various working conditions and demanding requirements. Finishes such as zinc plating provide corrosion protection and reliable performance in mechanical and assembly applications.

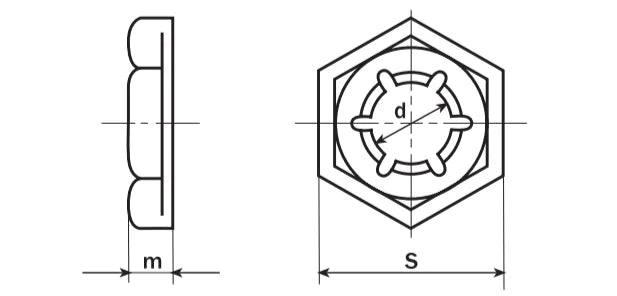

Product dimensions
| d | t | m | s |
|---|---|---|---|
| M6 | 0,4 | 3 | 10 |
| M8 | 0,5 | 3,5 | 13 |
| M10 | 0,5 | 4 | 17 |
| M12 | 0,6 | 4,5 | 19 |
| M14 | 0,6 | 5 | 22 |
| M16 | 0,7 | 5 | 24 |
| M18 | 0,7 | 5,5 | 27 |
| M20 | 0,8 | 6 | 30 |
| M22 | 0,8 | 6 | 32 |
| M24 | 0,9 | 7 | 36 |
| M27 | 1,0 | 7 | 41 |
| M30 | 1,1 | 8 | 46 |
| M36 | 1,3 | 9 | 55 |
Grades
